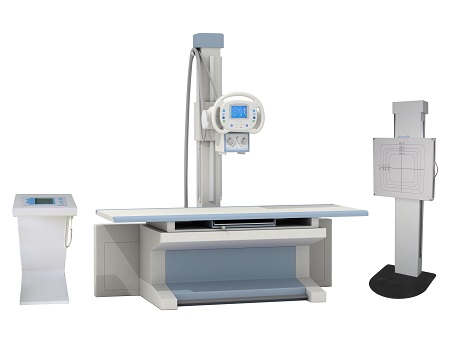

Description igh Frequency X-ray Radiograph System Call for price Description Dimensions: Machine：225*118*100cm GW:770kg NW:550kg Control console：120*115*143cm GW:380 kg NW:300kg Bucky stand: 208cm*73cm*87cm GW:235kg NW:189kg Specification: Item content Output power 55kW Main inverter frequency 60kHz X-ray tube (SIEMENS RAY®-14_1) Rotary anode, dual-focus, large focus: 1.2mm, small focus: 0.6mm, the frequency for large is 78kW and small is 33kW. Anode thermal capacity:260kJ (370kHu) Tube thermal capacity: 1000kJ (1780kHu) Rotary anode speed 8500rpm-10800rpm mA range 10mA-500mA Tube voltage 40kV-140kV Anode target surface angle 12° mAs 0.1-630mAs Table radiography grids Grid density:103L/INCH;Grid ratio:10:1;Focusing distance:120cm;Stationary type:15"×18" Exposure Time 0.001s-12.5s Power supply 380/400VAC three phase, 50Hz. Operation method close-table graphic program controlled LCD touchable screen operation; wireless remote control exposure Basic Configuration: 1, New integral radiography table (with pillar) one unit 2, Combined high-frequency high-voltage X-ray generator one set 3, Colored LCD touch screen control box one unit 4, Collimator one set 5, Electric box one unit Structural Performance: Table size 2000×760mm Table height ≤700mm Table transverse movement ≥220mm Table longitudinal movement ≥900mm Grids cassette holder movement ≥560mm X-ray tube assembly center rotation ≥±120° Rotation of the pillar 4×90° Axial rotation 0-35° SID 450-1200mm Pillar movement along the table ≥1370mm Film size in grids cassette Max 356mmX432mm(14’’x17’’) Hot Features: It is installed with close-table graphical colorful LCD touch screen and wireless remote control exposure, which makes the operator easy to use. We incorporate the latest compact high-frequency and high-voltage X-ray generator, which ensure superior image quality, while the skin dose is low, to protect the patient better. It can choose KV, MAS two buttons system, photograph mode and KV, MA, S three buttons system, two photography mode could meet different users professional requirements perfectly Adopt the technology of kV and mAs num
