Description

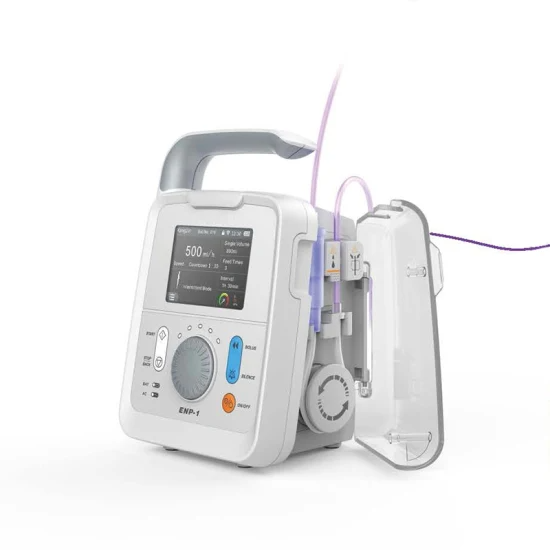

Description ● Easy to operate and user friendly ● Audible and visible alarms includes overtime alarm, occlusion alarm, empty alarm, infusion over alarm, low battery alarm, operation error alarm, etc. ● Large colorful LCD display. ● Purge and Reverse function. ● Two Power supplies: AC power supply or built-in rechargeable Lithium-ion polymer battery. Technical Specification 1. Flow rate：1ml/h～500ml/h, 1ml/h increment. 2. Target infused volume / Tar. volume: 0~9999ml, (0~999.9ml, 0.1ml increment; 1000~9999ml, 1ml increment). 3. Infused volume: 0~9999ml, (0~999.9ml, 0.1ml increment; 1000~9999ml, 1ml increment). 4. The flow precision is ± 10% according to the clinical setting. 5. Purge and reverse rate: 500ml/h. 6. Fuse specification: F1AL /250V, 2 pieces per pump. 7. Power supply: AC 100V~240V, 50/60Hz, ≤25VA, 8. Internal Lithium-ion polymer battery: DC 11.1V, ≥1600mAh. The battery backup is approx. 5 hours when using a fully charged battery and running at 25ml/hr. 9. Operating condition: 　Temperature 5~40oC, 　Relative humidity: 20~90%. 　Atmospheric pressure: 860hPa～1060hPa. 10. Safe grade: Class I, type CF 11. Size: 130 mm (W) × 150mm (H) × 100mm (D) 12. Net weight: approx. 2kg
